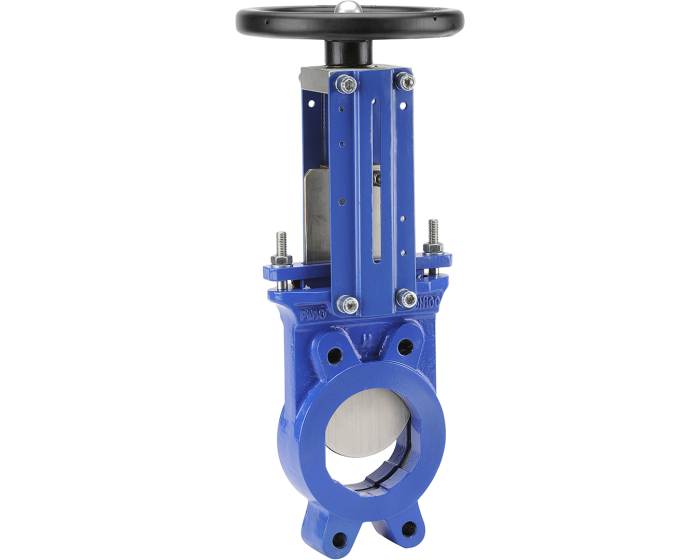

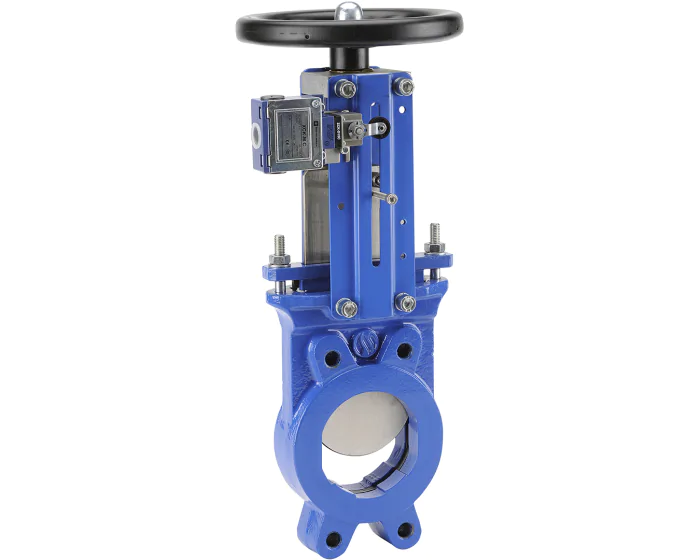

The 178 series bidirectional knife gate valve is made of cast iron with NBR seat, non rising stem, lug type, PN10 flange connection. Several features available: non rising handwheel, with limit switch.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Type of paint | Epoxy/polyester |
| Paint coating thickness (µm) | 150.00 |
| Tightness test standard | ISO 5208. Rate A |
| Opening device | Handwheel |
| Application | Water supply and distribution network |
| Shaft/stem matérial | Stainless steel AISI 304 |
| DN | DN50 - 2'' |
| Face to Face (mm) | 40.0 |
| Fluid | Abrasive fluids / Dirty water / Sludge |
| Body material | Cast iron |
| Number of sensors | 0 |
| Packing gland | Yes |
| PS (bar) | 10 |
| Connections | Between flanges PN10/16 |
| RAL (Paint) | 5005 |
| Seats | NBR |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Type of stem | Non-rising |
| Main product colour | Blue |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 Cast iron DN50 - 2'' | 178050 | S1010105 |
€153.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN50 - 2'' 1 | 178051 | S1010106 |
€243.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN65 - 2''1/2 | 178065 | S1010107 |
€165.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN65 - 2''1/2 1 | 178066 | S1010108 |
€254.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN80 - 3'' | 178080 | S1010109 |
€186.87
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN80 - 3'' 1 | 178081 | S1010110 |
€275.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' | 178100 | S1010111 |
€193.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN100 - 4'' 1 | 178101 | S1010112 |
€283.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' | 178125 | S1010113 |
€231.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN125 - 5'' 1 | 178126 | S1010114 |
€347.94
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' | 178150 | S1010115 |
€265.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN150 - 6'' 1 | 178151 | S1010116 |
€360.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN200 - 8'' | 178200 | S1010117 |
€452.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN200 - 8'' 1 | 178201 | S1010118 |
€510.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN250 - 10'' | 178250 | S1010119 |
€559.97
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN250 - 10'' 1 | 178251 | S1010120 |
€626.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN300 - 12'' | 178300 | S1010121 |
€741.31
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN300 - 12'' 1 | 178301 | S1010122 |
€807.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN350 - 14'' | 178350 | S1010123 |
€1,217.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN350 - 14'' 1 | 178351 | S1010124 |
€1,358.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN400 - 16'' | 178400 | S1010125 |
€1,655.84
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN400 - 16'' 1 | 178401 | S1010126 |
€1,683.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN450 - 18'' | 178450 | S1010127 |
€2,121.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 Cast iron DN500 - 20'' | 178500 | S1010128 |
€2,360.76
(excl. btw)
|
add to cart |
